Discover the superior quality and performance of the Carlo Gavazzi CTD9V7505AXXX with Onrion LLC in United States . Whether you are looking for reliability or efficiency, this product meets all your industrial needs.
The CTD9V7505AXXX is designed to provide optimal performance and durability in various applications. Known for its high-quality construction and innovative features, it is a preferred choice for professionals.
Key Features of CTD9V7505AXXX :
At Onrion LLC , we offer the CTD9V7505AXXX at competitive prices and with the fastest delivery times across United States . Our expert team is ready to assist you with all your inquiries and provide tailored solutions to meet your specific needs.
Why Choose Onrion LLC ?
Get Your Quote Today! Ready to enhance your operations with the CTD9V7505AXXX ? Contact us now for a personalized quote. Fill out the form below or send us an email with your inquiry. Let us help you make a cost-effective, quality-driven choice for your business.
Important Notice: While we supply Carlo Gavazzi products, Onrion LLC is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
| BRAND | Carlo Gavazzi |
| Product | CTD9V7505AXXX |

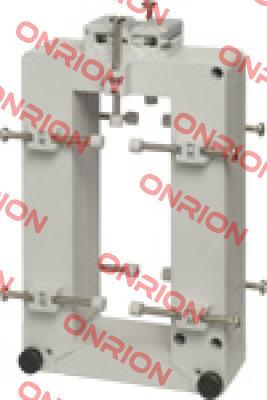

| Description | AC Solid-core Current Transformer |
| Internal code | ONR242024 |
| Weight | 1 |
| Technical specification | AC Solid-core Current Transformer Type CTD-9V / CTD-9H (max 35x125mm) • Bus-bar type solid-core current transformer • Class 0.5 accuracy • Currents from 400 A to 3200 A • Up to 10 Bus-bar isolated fixing screws • Double screw terminals (up to 8-wire connections) • Sealable terminal block covers Product Description Ordering Key CTD-9V2000 5AXXX Solid-core current transformer with bus-bar mountng facility. Rated primary currents from 400 A to 3200 A. Model Primary current Secondary current Option Type Selection Model CTD-9V:vertical mounting CTD-9H:horizontal mounting Primary current From 400A to 3200A (Refer to the Range Table) Secondary current 1A (on request) 5A Option XXX:none XTX: tropicalization InputSpecifications Operating frequency48 to 62 Hz Max. system voltage0.72 kV Rated insulation level3 kV/1 min. @ 50 Hz Insulation class E (max 75°C) Short-time current rating Ith Typical 100 In /1 s Idyn 2.5 Ith The short-timethermal current Ith is anyway limited by the cable/bus-bar size Extended current rating refer to the Range Table Security factor (FS)≤ 5 (Class: 0.5, 1 and 3) General Specifications Standards According to EN60044-1 HousingABS, self-extinguishing: UL 94 V-0 MountingBus-bar mounting Standard accessoriesTwo terminal block screws. Ten bus-bar fixing screws. Ten plastic caps for bus-bar fixing screws. Two sealable terminal block covers. Special features1 A secondary current, Tropicalization Working temperature-25°C to: refer to the Range Table (-13°F to: refer to the Range Table) (R.H. < 90% non condensing @ 40°C) Storage temperature-30°C to +70°C (-22°F to 158°F) (R.H. < 90% non condensing @ 40°C) Approvals CE. cURus and CSA (400A to 2000A) Connection Screw type Cable cross section areaFrom 1.5 to 6 mm2 Min/Max screws tightening torque relevant to terminal block screws: From 1 to 2 Nm Max screws tightening torque relevant to the cable/bus-bar fixing screws: 0,3 Nm Protection degree IP00 (without sealable terminal covers) IP20 (with sealable terminal block covers + wire terminals) Bus-bar size Max. 35x125 mm WeightFrom 450 to 700 g |
